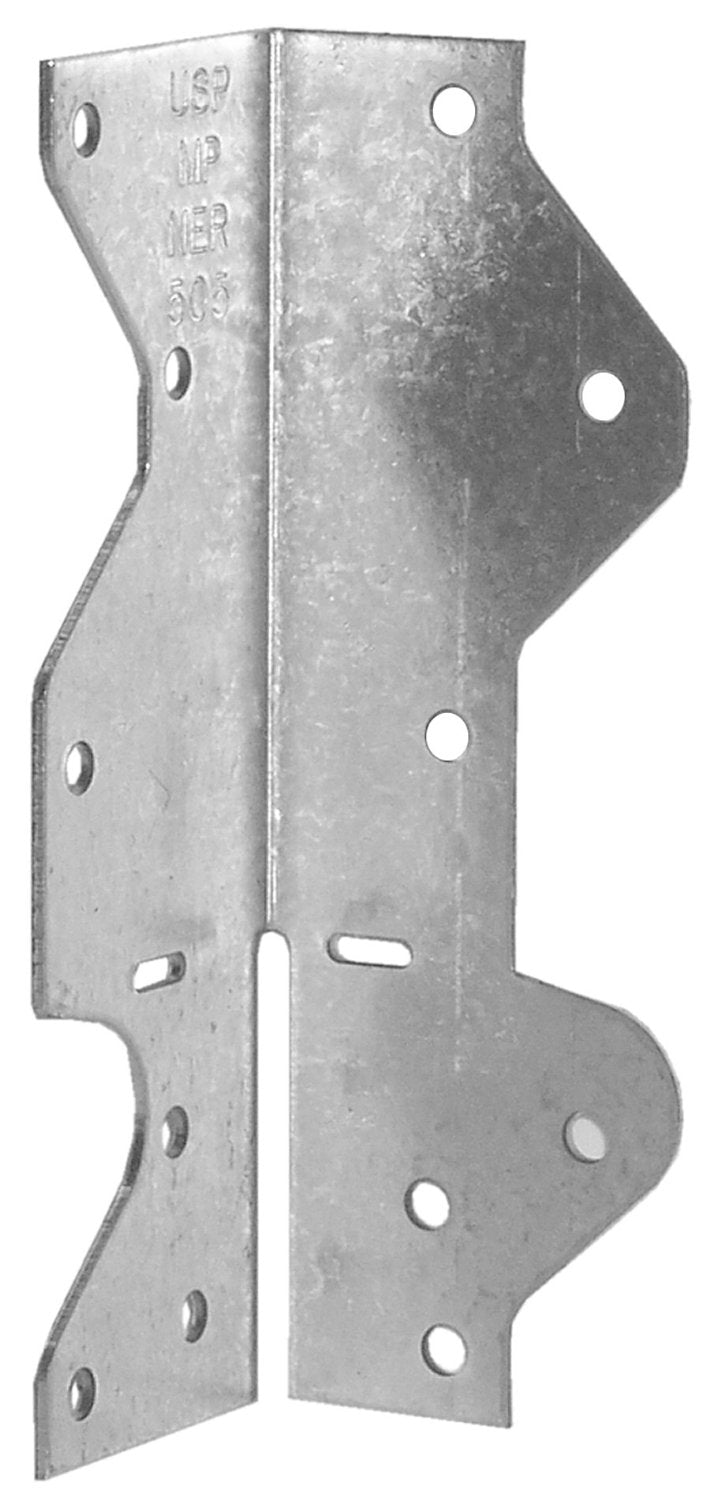

USP Structural Connectors MPA1-TZ Multi-Purpose Framing Angle, 4-1/2″ Outlet Footlocker Finishline

Use for joist to header, rafter to plate, stud to plate or 1″ foamboard installations. Achieves continuous load path in high wind and seismic resistant construction. Enables quick field adjustments for 2 and 3-way connections. Tabs enable two and three-way connections. Bend tabs only once. G90 galvanizing finish. Requires 8d x 1-1/2 nails. Meets SBCCI, BOCA – NER 505, ICBO 5736, DSA PA-076, Dade County, FL 01-417.11 and L.A. City RR25303 codes.

Highlights:

• Multipurpose – Steel
• Adjustable – Bent
• Finish: Triple zinc
• Size: 1-7/16″ 1 x 1-1/2″ 2 x 4-1/2″
• 18 Gauge – For ACQ pressure treated lumber
